Master Engine Sealing: A Complete Breakdown of the 5 Essential Engine Sealing Systems
When servicing or overhauling an engine, sealing integrity is the ultimate line of defense between peak performance and catastrophic failure. Engine sealing isn’t just about replacing a single gasket; it’s about ensuring every high-pressure combustion chamber, fluid line, and rotating shaft operates in perfect harmony.
At AITE Gasket, from head gaskets and oil seals to precision cylinder head bolts, our one-stop solution covers all your sealing needs.
Here is a detailed breakdown of the 5 Core Engine Sealing Systems featured in our flagship engine solution.

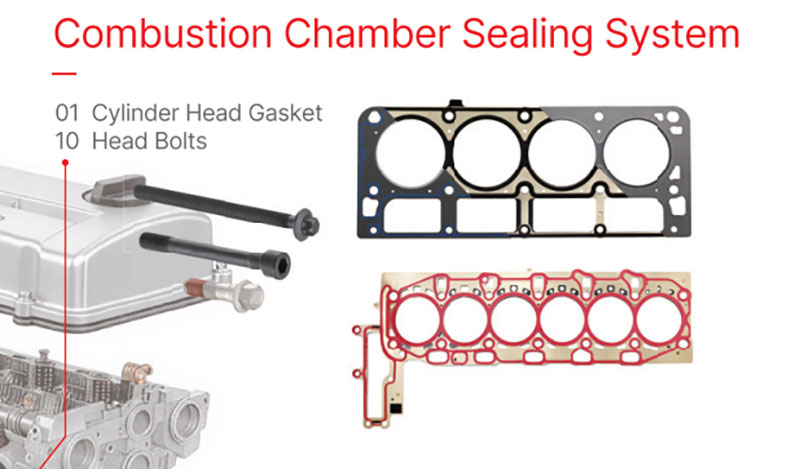

1.Combustion Chamber Sealing System
Core Objective: Restores original engine power.
Cylinder Head Gasket: Dual-Seal® MLS, stainless steel + FKM coating. Seals at cold start, No sealant needed. Temperature resistance range 40°C to +300°C, pressure up to 270 bar.
Head Bolts: ColdForm® high-strength alloy steel, multi-station cold heading, unbroken grain flow. μ=0.12 0.14, 30% higher strength.

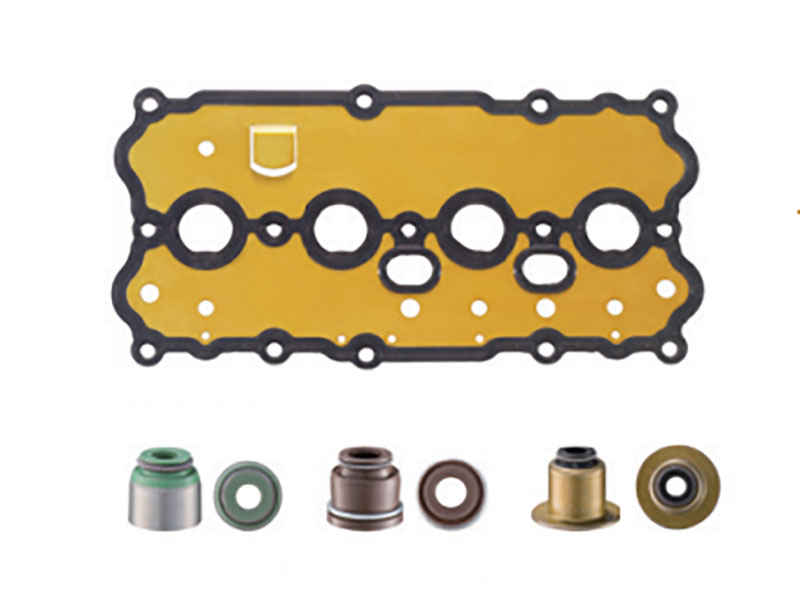

2.Valve Train Sealing System
Core Objective: Keeps the engine clean, reduces oil consumption.
Valve Cover Gasket: Molded from premium ACM, Silicone, or NBR materials, one-piece molded with thickened corners and reinforced bolt holes to prevent compression deformation. Temperature resistance range 40°C to +200°C
Valve Stem Seal: Made of high-quality FKM, temperature resistance up to 250°C. Precision lip design.

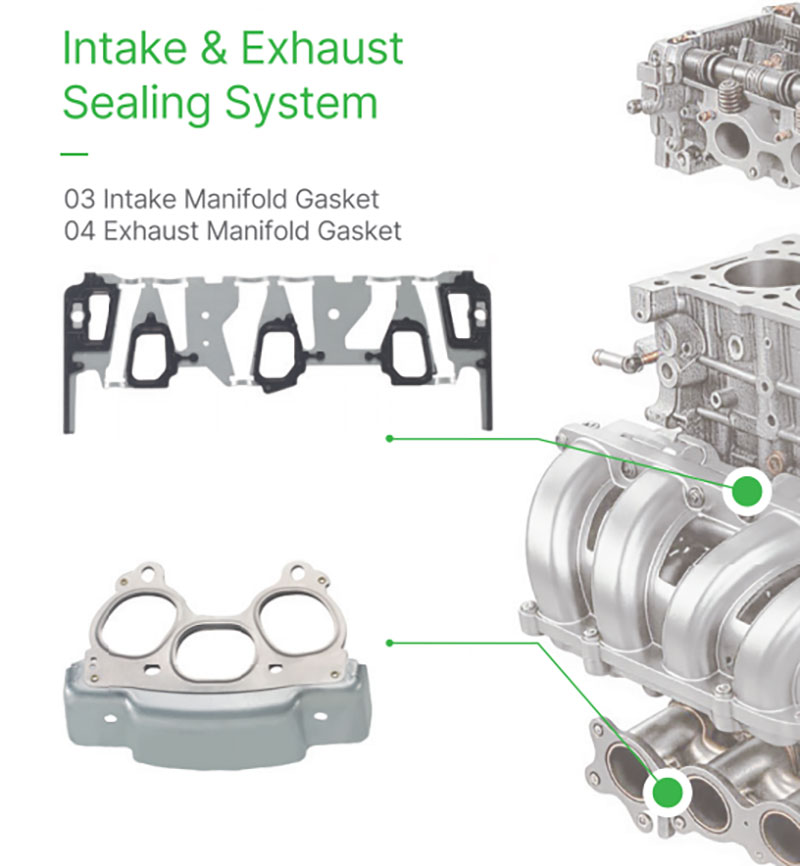

3.Intake & Exhaust Sealing System
Core Objective: Improve performance, lowers emissions
Intake Manifold Gasket: Made of stainless steel, fiber composite material, or oil-resistant rubber. Vacuum-optimized design with reinforced intake ports prevents vacuum leaks. Temperature resistance range 40°C to +150°C, vacuum resistance ≥0.8 bar
Exhaust Manifold Gasket: Multi-layer construction combining stainless steel or graphite composite layers with heat shields. Designed with combustion chamber fire rings to resist thermal shock. Withstands temperature up to 850°C

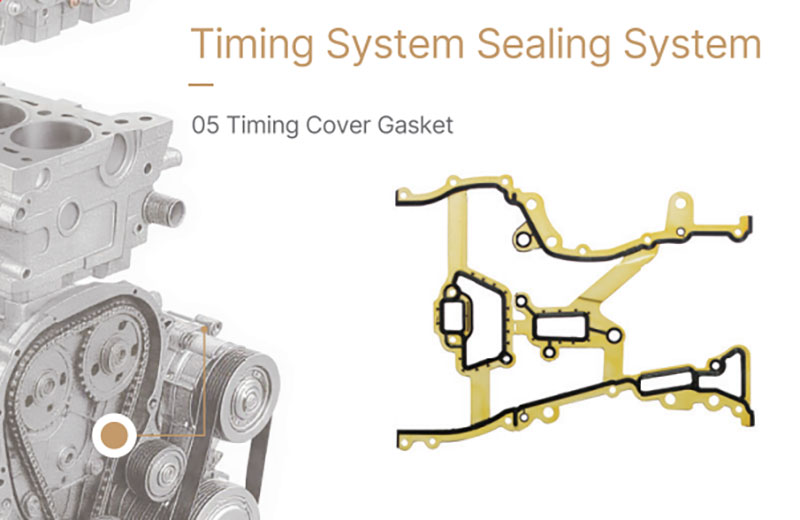

4.Timing System Sealing System
Core Objective: Extends timing system life, prevents severe damage.
Timing Cover Gasket: Metal Skeleton+ oil-resistant rubber composite structure, with continuous elastic bead to compensate cover deformation. No swelling under oil immersion. Temperature resistance range 40°C to +150°C.

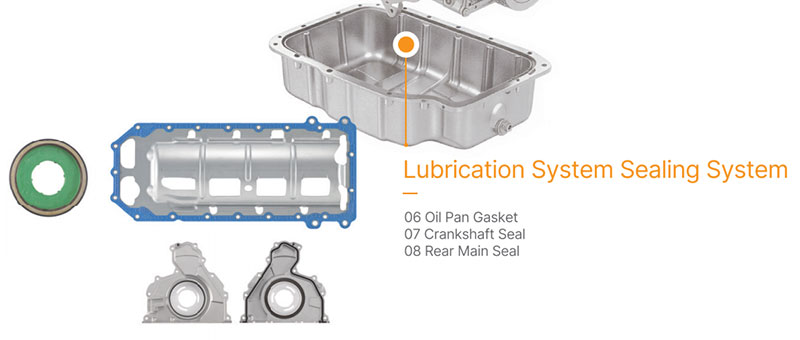

5.Lubrication System Sealing System
Core Objective: Eliminates oil leaks, protects drivetrain.
Oil Pan Gasket: Pure rubber or rubber-metal composite, highly elastic, reinforced bolt holes. No swelling, no leaks.
Crankshaft Seal: Dyna Lip® PTFE, FKM + PTFE composite, constant spring, dynamic following. Handle linear speeds ≤30 m/s, temperature resistance 40°C to +200°C (PTFE layer 200°C to +260°C).
Rear Main Seal: Aluminum/plastic carrier + PTFE or FKM, precision die-cut. Temperature resistance range ‑40°C to +150°C.
